(Lead-Time)

• Not Vehicle Specific
• Waterproofing: IP68 Rating

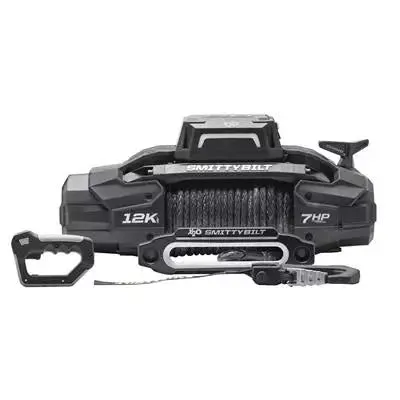

• Rated Line Pull: 12,000Lbs (5,454kgs) Single Line
• Motor: 7hp Series Wound
• Control: Remote Switch, 12' (3.7m) lead
• Gear Train: 3-Stage Planetary
• Gear Ratio: 216:1
• Clutch: Sliding Ring Gear
• Brake: Automatic Out-Of-Drum
• Drum Size: Diameter 2.5
• Cable: 98.5' 3/8 Diameter
• Cable Type: Synthetic Rope
• Fairlead: Hawse
• Remote Control: Included
• Integrated Wireless Remote
• Recommended Battery: 650CCA Minimum for Winching
• Battery Leads: 25mm2, 72(1.83m)1
• Finish: Textured Black
• Weight: 76.0Lbs (30.4Kgs)
• Mounting Bolt Pattern: 10.0 x 4.50
• Overall Dimensions: (L x W x H) 22.3 x 5.4 x 9.4
