Features
- Through the use of digital power technology, Generac's singe-phase service rated transfer switch has the ability to manage 4 individual HVAC loads with no additional hardware.
- Designed for use with single-phase generators that utilize an Evolution or Nexus Controller.
- Aluminum NEMA/UL Type 3R (indoor-outdoor) enclosure with electrostatically applied and baked power paint provides additional corrosion protection.
- Simplify installation with a board that combines load management and transfer switch hardware.
- Gain even more flexibility when used in tandem with Smart Management Modules.
- Decreases transfer switch complexity.
- The Smart A/C Module manages the loads by shedding the connected loads in the event of a drop in generator frequency (overload).
- Smaller fuses integrated into the control board.
What's in The Box

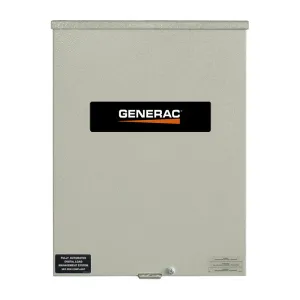

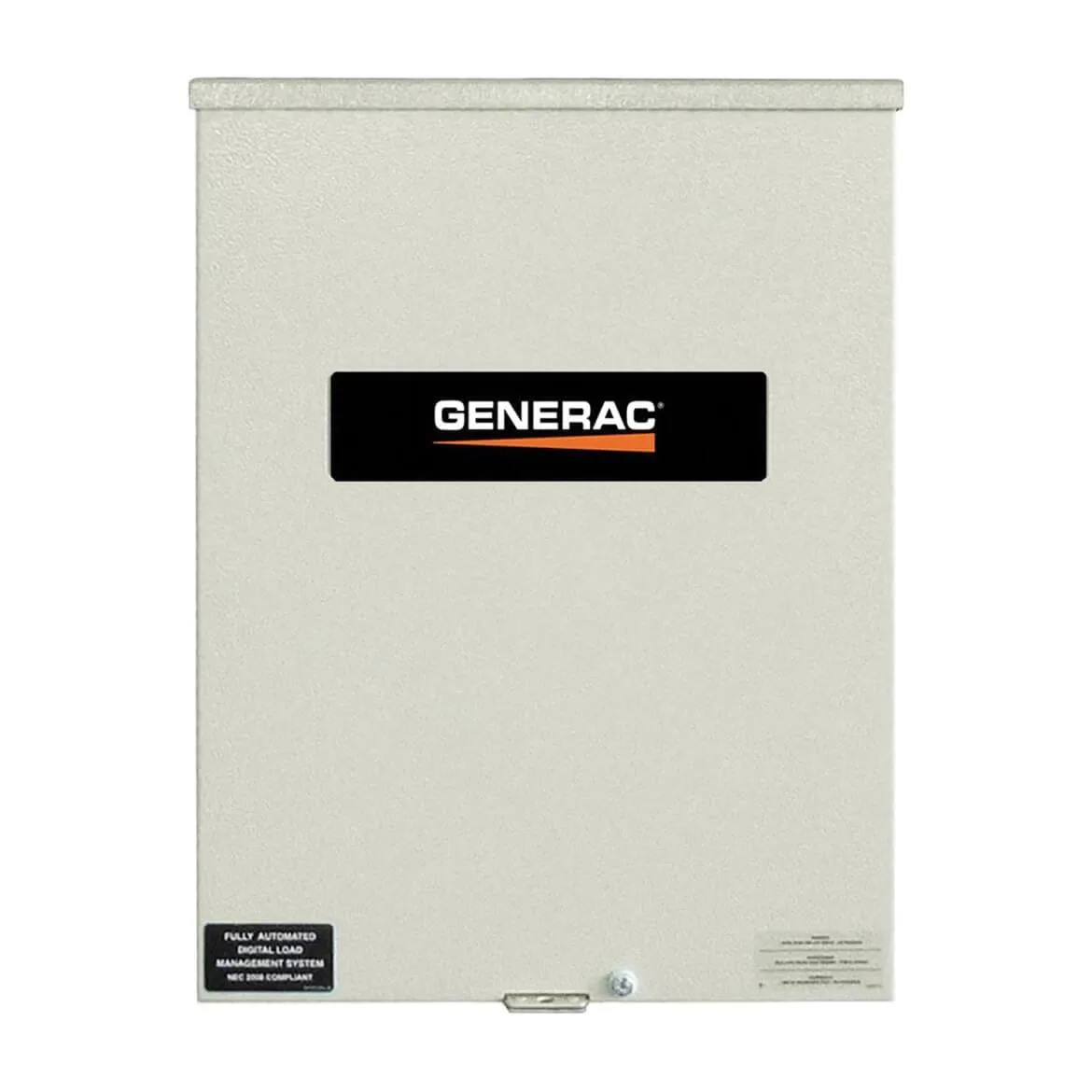

- Generac 120/240-Volt 200-Amp NEMA 3R Automatic Smart Transfer Switch - RXSW200A3
- Owner's Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
| Sku | RXSW200A3 |
| Brand | Generac |
| Voltage | 120/240V |
| Phase | Single-Phase |
| Frequency | 60 Hertz |
| Rated Amps | 200 Amps |
| Enclosure | NEMA 3R |
| Transfer Switch Style | Service Disconnect |
| Max Utility Input | 200 Amps |
| Max Generator Input | 200 Amps |
| Maximum Wattage | 48000 Watts |
| Product Dimensions (LxWxH)(In.) | 6.3 x 13.5 x 30 In. |
| Shiping Weight (lbs) | 39 lbs |
